Range Plan

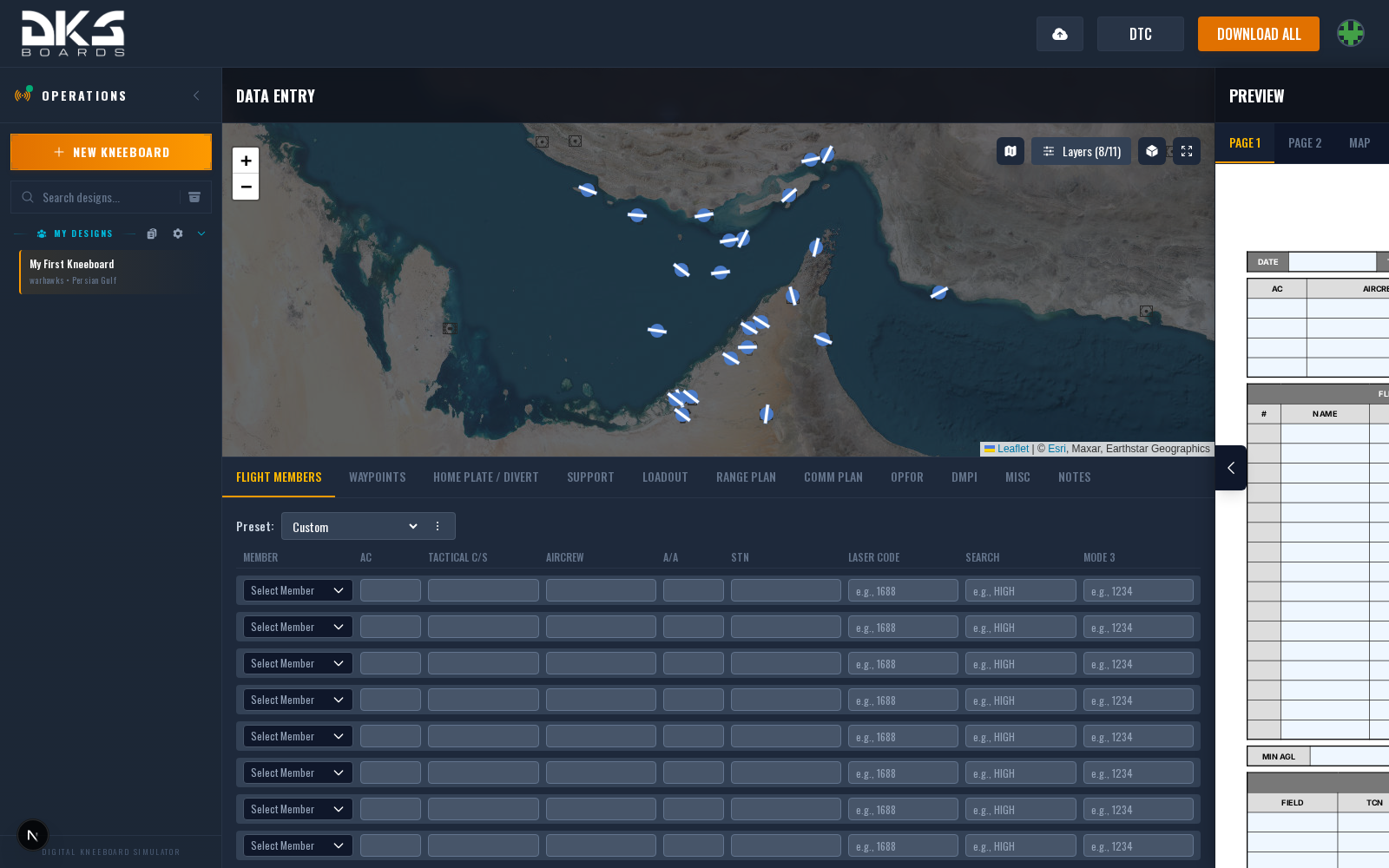

The Range Plan tab defines range waypoints for structured range activities such as bombing passes and strafing runs. Each row represents a single range point with optional coordinates for map plotting. Up to 11 entries are supported.
Row Fields
Each row contains the following fields in a single grid:
| Field | Description | Example |
|---|---|---|
| WP | Waypoint number for this range point. | 1 |
| Description | Name or description of the range point. | MK-82 CCIP |
| Elevation | Target area elevation in feet MSL. | 2800 |
| Remarks | Additional notes. | Left base |
| Radius | Circular area radius around the coordinate. | 5 |
| Unit | Radius unit — "NM" (nautical miles) or "M" (meters). | NM |
| Latitude | Range point latitude. Supports DD, DDM, DMS, and MGRS input. | N 41° 15.123' |
| Longitude | Range point longitude. | E 043° 50.456' |
Coordinate Format
Use the Coordinate Format dropdown at the top of the tab to switch between DD (decimal degrees), DDM (degrees decimal minutes), and DMS (degrees minutes seconds). Pasting an MGRS coordinate into either the latitude or longitude field will auto-convert it and fill both fields.
Map Placement
Each row has a map pin button. Clicking it targets that row so the next click on the tactical map sets its coordinates. While targeted, the button displays "TGT".
Location Presets
The list button on each row opens the location preset overlay, which provides theater-specific preset locations. This is useful for commonly used ranges and targets.
Range plan entries appear on the kneeboard in row order. Use them to document your range card for training missions.
